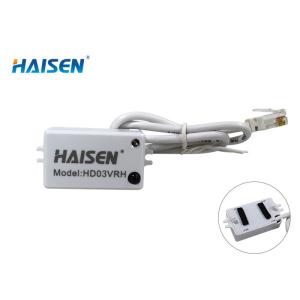

High Frequency 5.8GHz Dimmable Sensor Compact Design 12VDC 5 Warranty
Features:
Description
| Operating voltage | 12 VDC |
| Operating current | 30mA±5% |
| Mounting Height | Max.15m/49.2ft |
| Detection range | Max.14m/45.92ft |
| Daylight threshold | 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/ Disable |
| Detection angle | 30°-150° |
| Detection Area | 25%/50%/75%100% |
| Operating Frequency | 5.8 GHz ±75 MHz |
| Output | 5V PWM/5V TTL |
| Stand-by period | 0s/10s/30s/1min/5min/10min/30min/+∞ |
| Stand-by dimming level | 10%/20%/30%/50% |
| Hold time | 5s/30s/1min/3min/5min/10min/20min/30min |
| Operating temperature | -20°C~+55°C |
| Approval | CE, ROHS |
| Life time | 50000h |
| Warranty | 5 years |
| IP rating | IP 20 |
| Installation | Installed inside lamps |
| Packaging Requirement | Bubble pack, paper flat, outer carton. |
Wiring Diagram
Size
Detection coverage
Demo
Application
